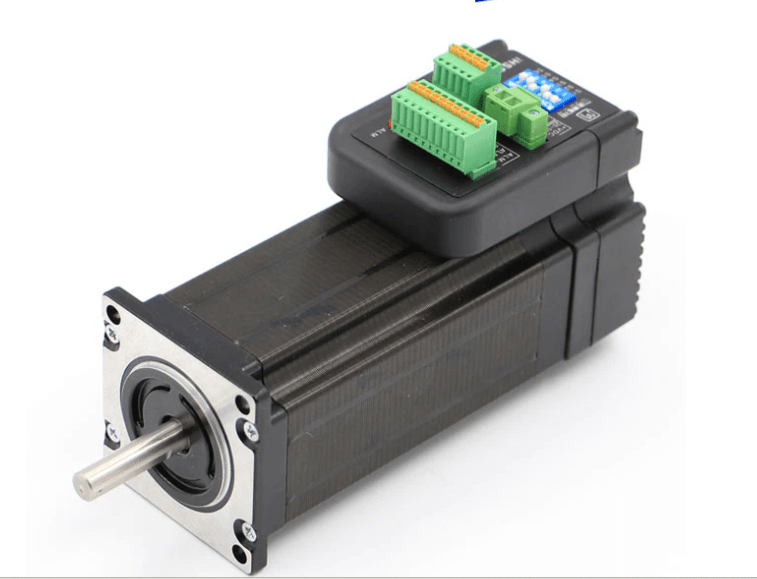

Nema23 180W Integrated Servo Motor

Description The Nema23 180W Integrated Servo Motor is a high-performance brushless DC servo that takes performance to the next level. With the capability to be programmed and configured, these are excellent for applications where high precision and repeatability are required which include but are not limited to; CNC machines, robotics and high-precision actuators. Unlike stepper motors, these servos are significantly quieter, have quicker acceleration and maintain constant torque throughout the RPM range. The servo is fully integrated with the driver, only requiring a control signal and a power source. This servo is closed-loop which means there is more accurate positioning in the system which leads to unmatched repeatability.By default, programming is generally not required and can be used right out of the box. These motors have the NEMA23 footprint and are a drop-in replacement for most systems. Please note that the longer shaft of the motor may require 10mm longer spacers depending on your machine. Specifications: Rated Speed: 3000RPM Input Voltage: 24-50VDC. (36V typical and recommended value) Rated Current: 6A Motor Inductance: 0.58mH Nominal Torque: 0.6Nm Max Torque (Boost): 1.8Nm Max Pulse Frequency: 250Khz Weight: 1.8kg Features of the Integrated Servo Motor: High-performance brushless DC servo. Easy pulse/Rev setting with provided table and dip switch array Ease of connectivity with integrated spring terminal connectors. Fully Integrated driver with high-performance DSP chip. Low vibration and high efficiency. Constant torque output through the RPM range. Autotuning. Load-dependent torque output. Multiple control modes: Step/DIR (Recommended), RS232. Built-in quadrature encoder. Alarm outputs. Overvoltage and overcurrent protection Free tuning software available (English) Communication: The servo has two modes of communication to suit different applications: RS232 communication Step/DIR communication High-speed carving in CNC applications: No torque drop compared to stepper motors at high speeds. Cut your milling times down with high speed and quick acceleration. Use the Integrated Servo Motor to drive: Nema23 compatible CNC machines Laser Cutters Plasma Cutter Robotic Actuators Automated Linear Actuators Typical Connections Below is a typical connection using Step, Enable and Direction signals from the controller. Engineering Drawings: Please note: Shaft diameter: 8mm Shaft Length: 33mm Side View   Front and Rear View Tips and Tricks The servos are best matched with low-pitch ball screws for a high-speed and high-precision system. For advanced users, the USB-RS232 180W Servo programming cable is recommended for tuning your servo. Related
