FAAC 413 230V Brand: FAAC

FAAC 413 230V Brand: FAAC

$ 95.87

Perimeter Seals are sealing solutions designed to create a an airtight fire resistant barrier around the edges and perimeter of fire doors, regular doors, joints and openings. Perimeter seals prevent passage of water, fire and smoke through gaps.

Perimeter Seals can typically last 10 -15 years with annual inspections and maintenance.

Majority of Acoustic seals can last from 10 to 15 years of optimal performance depending on the type of acoustic seal and conditions.

Acoustic seals are designed to reduce sound transmission through gaps, joints and openings between doors, windows and walls throughout the building. They eliminate sound waves which can easily pass through gaps, which enhances the soundproofing system for doors, windows and walls.

Acoustic seals can be used in commercial buildings, residential buildings public buildings. Typically they are installed around doors, windows and brushes.

Acoustic seals can provide noise reduction of up 20db improvements in sound reduction for doors, windows and walls.

Unsure about something? Get in touch to ask us a questions

Contact Us

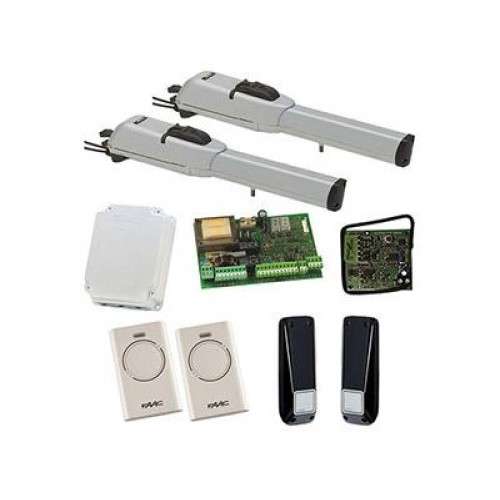

FAAC Swing Gate Motor in Dubai, UAE. FAAC 413 230V FAAC 413 Swing Gate Motor in UAE. .FAAC 413 230V Electromechanical operator. .Max width single leaf 1,8 – 2,5 m. .Off axis” thrust operator. .Opening and closing mechanical stops included. .Horizontal exit for cables to allow near to ground installation (low installation). Dimensions and technical specifications: .Power supply voltage : 220-240V~ 50/60 Hz .Electric motor : Asynchronous single phase .Max. power : 250 W .Max expressed force : 2000 N (*) .Rod max speed : 16 mm/s (*) .Rod travel : 300 mm (350 mm without mechanical stops) .Max. leaf opening angle : 110° .Operating ambient temperature : -20°C ÷ 55°C .Thermal protection : 140°C .Protection class : IP54 .Weight : 7.8 Kg .Use frequency : S3 – 30% .Max. leaf width : 1,8 m (2,5 with electric lock) .Mounting brackets : Rear attachment to be welded/screwed .Dimensions (LxDxH) : 777 x 101 x 152 mm. FAAC 413 Kit Includes: .2 x FAAC 413 Swing Gate Motor. .1 x XLED flashing light. .1 x Lock with key. .1 x E045S control unit. .1 x Enclosure mod. E for electronic control units. .1 x XF 433 MHz receiver. .1 x Pair of photocells XP 20 BD. .1 x 2 channels transmitter XT2 433 SLH LR. .1 x Push button. .There are no reviews for this produc Category: SWING GATE OPENER

Perimeter Seals are sealing solutions designed to create a an airtight fire resistant barrier around the edges and perimeter of fire doors, regular doors, joints and openings. Perimeter seals prevent passage of water, fire and smoke through gaps.

Perimeter Seals can typically last 10 -15 years with annual inspections and maintenance.

Majority of Acoustic seals can last from 10 to 15 years of optimal performance depending on the type of acoustic seal and conditions.

Acoustic seals are designed to reduce sound transmission through gaps, joints and openings between doors, windows and walls throughout the building. They eliminate sound waves which can easily pass through gaps, which enhances the soundproofing system for doors, windows and walls.

Acoustic seals can be used in commercial buildings, residential buildings public buildings. Typically they are installed around doors, windows and brushes.

Acoustic seals can provide noise reduction of up 20db improvements in sound reduction for doors, windows and walls.

Unsure about something? Get in touch to ask us a questions

Contact Us

Related products

You may also like
KEY Swing Gate Motor in Dubai, UAE.
Key Star Swing Gate Motor 3m up to 400 kg

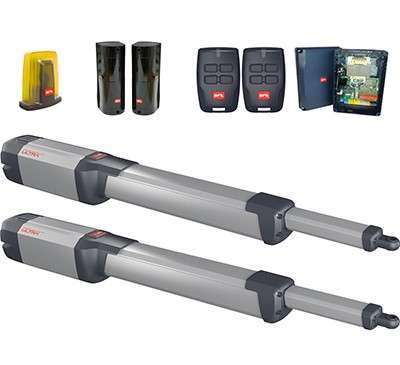

BFT KUSTOS BT A40 Swing Gate Motor in UAE
