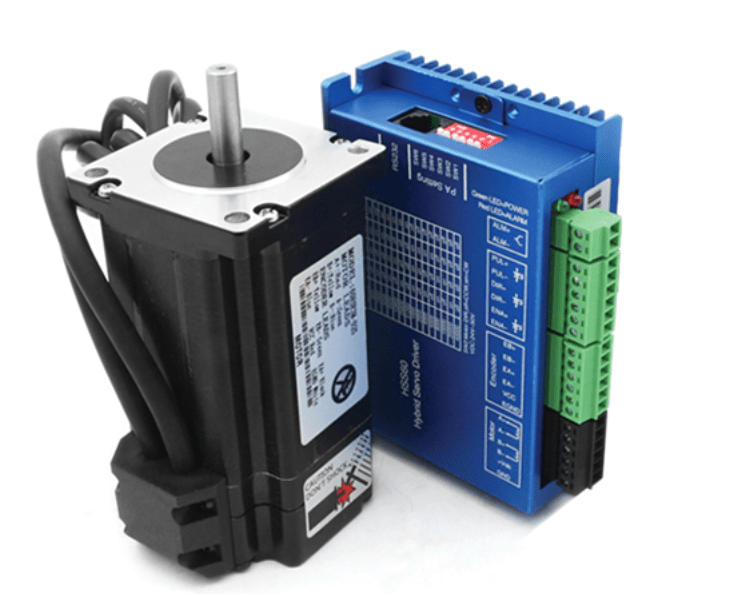

Nema24 Closed Loop Stepper Motor and HBS57 Driver Bundle – 3.0Nm

Nema24 Closed Loop Stepper Motor and HBS57 Driver Bundle – 3.0Nm

$ 99.79

Perimeter Seals are sealing solutions designed to create a an airtight fire resistant barrier around the edges and perimeter of fire doors, regular doors, joints and openings. Perimeter seals prevent passage of water, fire and smoke through gaps.

Perimeter Seals can typically last 10 -15 years with annual inspections and maintenance.

Majority of Acoustic seals can last from 10 to 15 years of optimal performance depending on the type of acoustic seal and conditions.

Acoustic seals are designed to reduce sound transmission through gaps, joints and openings between doors, windows and walls throughout the building. They eliminate sound waves which can easily pass through gaps, which enhances the soundproofing system for doors, windows and walls.

Acoustic seals can be used in commercial buildings, residential buildings public buildings. Typically they are installed around doors, windows and brushes.

Acoustic seals can provide noise reduction of up 20db improvements in sound reduction for doors, windows and walls.

Unsure about something? Get in touch to ask us a questions

Contact Us

Description Closed-loop Stepper Motor Specifications: Voltage: 2.25VDC Rated Current: 5A Motor Inductance: 1.8mH Holding Torque: 3.0Nm Encoder cable length: 5000m Motor cable length: 500mm Weight: 1.6kg Features of the Closed-loop Stepper Motor: High-performance and low inductance Closed-Loop Hybrid Stepper Motor. Comes with a handy 5m long encoder cable for ease of wiring. Low vibration and high efficiency. Built-in quadrature encoder. (1000 line encoder) High precision ensures precise carving in CNC applications Included: 3.0Nm Closed Loop Stepper Motor 5m long encoder cable HBS57 Closed-loop Stepper Motor Driver 1m 2 Core DC power cable. Motor Coil Wiring Diagram Encoder Lead Pinout Closed Loop Stepper Motor Driver Terminal Lead Colour EGND WHITE VCC RED EA- BLUE EA BLACK EB- GREEN EB YELLOW HBS57 Closed-loop Stepper Motor Driver Features: Anti-Resonance features provide smooth operation through the RPM range. Low noise and low vibration. 32bit processor and improved DSP control. Closed-loop vector control technology. Multi-Stepping allows a low-resolution step input to produce a higher microstep output for smooth system performance. Microstep resolutions programmable via dip switch array, from full-step to 1/128 microstepping. Optically isolated inputs reduce noise. Alarm outputs for fault diagnosis. Suitable for Nema23 and Nema24 sized closed-loop stepper motors. Support Pulse/Direction, CW/CCW or RS232 control modes. (Step/Dir control recommended) Overvoltage and overcurrent protection. HBS57 Closed-loop Stepper Motor Driver Specifications: Supply voltage: 20 to 50 VDC Output current: Up to 5.0A Peak (Load Dependent) Logic signal current: 7 to 20mA Pulse input frequency: 200 kHz Encoder Resolution (PPR): 1000 Isolation resistance: 500 MΩ Operating temperature: 0 to 50 °C Operating Humidity: 40 to 90%RH Vibration: 5.9 m/s² Max Weight: Approx. 300 g Dimension: 118 x 75x 34 mm HBS57 Stepper Motor Driver Engineering Drawings Use the Closed-loop Stepper Motor and driver bundle to drive: Nema23/24 compatible CNC machines Laser Cutters Plasma Cutters Robotic Actuators Automated Linear Actuators Tips and Tricks The closed-loop stepper motors are best powered by a 36V or 48V power supply for higher speed and greater torque. For existing CNC builds, use these motors with 8x8mm jaw couplings for a drop-in replacement. Related
