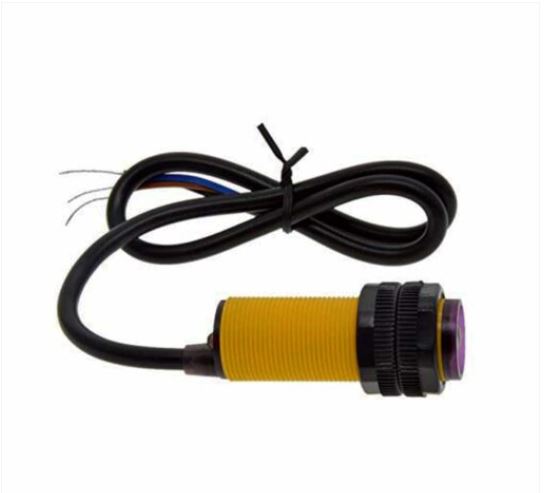

INFRARED OBSTACLE AVOIDANCE SENSOR – E18-D80NK

$ 6.17

Perimeter Seals are sealing solutions designed to create a an airtight fire resistant barrier around the edges and perimeter of fire doors, regular doors, joints and openings. Perimeter seals prevent passage of water, fire and smoke through gaps.

Perimeter Seals can typically last 10 -15 years with annual inspections and maintenance.

Majority of Acoustic seals can last from 10 to 15 years of optimal performance depending on the type of acoustic seal and conditions.

Acoustic seals are designed to reduce sound transmission through gaps, joints and openings between doors, windows and walls throughout the building. They eliminate sound waves which can easily pass through gaps, which enhances the soundproofing system for doors, windows and walls.

Acoustic seals can be used in commercial buildings, residential buildings public buildings. Typically they are installed around doors, windows and brushes.

Acoustic seals can provide noise reduction of up 20db improvements in sound reduction for doors, windows and walls.

Unsure about something? Get in touch to ask us a questions

Contact Us

Description INFRARED OBSTACLE AVOIDANCE SENSOR – E18-D80NK This sensors are aasy to assemble, easy to use Infrared sensor with a long detection distance and has less interference by visible light. The implementations of the modulated IR signal immune the sensor to the interferences caused by the normal light of a light bulb or the sunlight. This sensor has a screwdriver adjustment to set the appropriate detected distance to make it useful in many applications, and then gives a digital output when it senses something within that range. This sensor does not measure distance value. It can be used for collision avoidance robot and machine automation. The sensor provides a non-contact detection.   SPECIFICATIONS Operating voltage: 5VDC Operating current: 100mA Sn: 3-80CM Diameter: 17MM Sensor length: 45MM Lead length: 45CM Red: power supply positive 4.5-5V Yellow: TTL output for connection to the microcontroller Green: GND Output current: DC / SCR / Relay Control 100mA/5V supply Current consumption: DC <25mA Response time: <2ms Angle: more than 15°, Effective distance: Adjustable from 3-80CM Working environment temperature: -25 °C ~ 55 °C weight 0.03 kg Dimension 155x10x100mm   Photoelectric switch E18 technical parameters: Output current DC / SCR / Relay Control output: 100mA / 5V power supply Current consumption DC <25mA Response time <2ms Pointing angle: 15 degrees, the effective distance 3-80CM adjustable Testing objects: transparent or opaque body Working environment temperature: -25 degree ~ 55 degree Standard test objects: below the sun 10000LX incandescent 3000LX following Shell material: plastic Related
